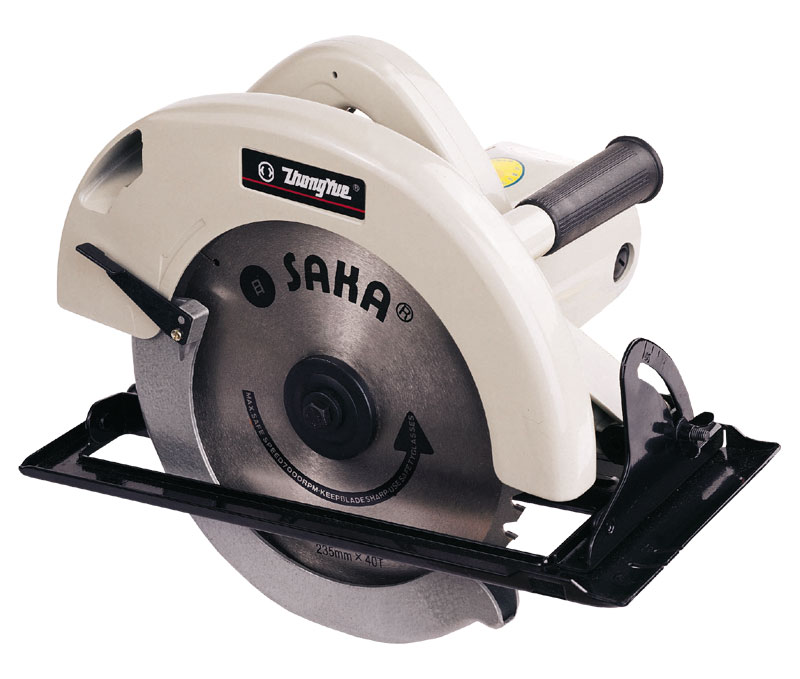

M1Y-YZ2-230 (G9)--9 " Circular saw ( Aluminum Housing )



Larger Picture

Features


Powerful 9.2 AMP motor
Precision cut helical steel gears
Weighs only 8 kgs. for easy portability
Aluminum Housing construction, Ball and needle bearing construction for smooth running and long tool life
Also can be installed to be a table saw ,2000W motor ensure that it can handle Heavy duty
Positive stop at 45° for bevel cutting
Spindle lock



Standard Equipment (Includes)
Socket wrench
Guide Ruler



Specifications
Volt
220V
AMPS (220V)
9.2 A
Continuous Rating Input
2000W
No load speed
4100 RPM
Blade Diameter
9 " ( 230mm )
Arbor
1 " ( 25.4mm )
Net Weight
8 Kgs
Max. cutting capacities at 90°
84 mm
  at 45°
58 mm
