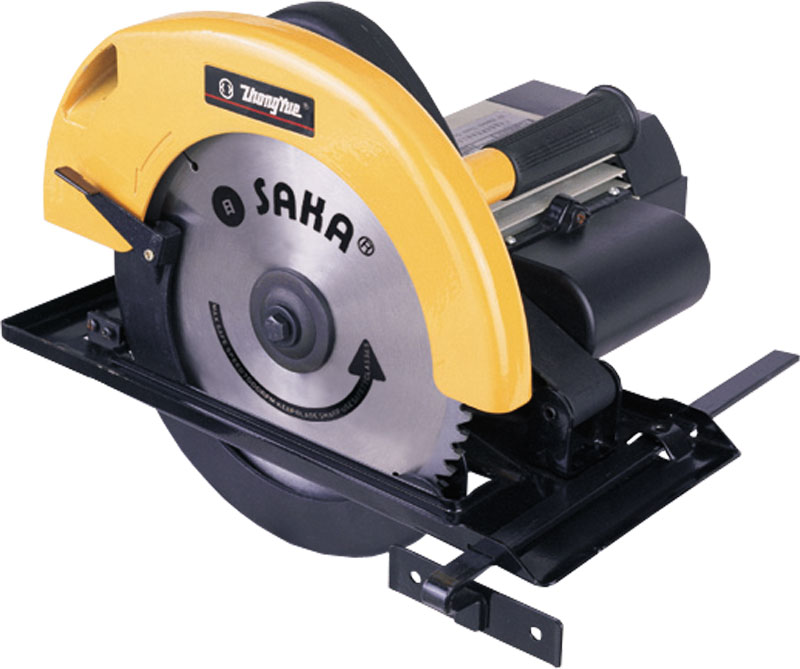

M1Y-YZ3-230 (G9)--9 " Circular saw (AC induction motor)



Larger Picture

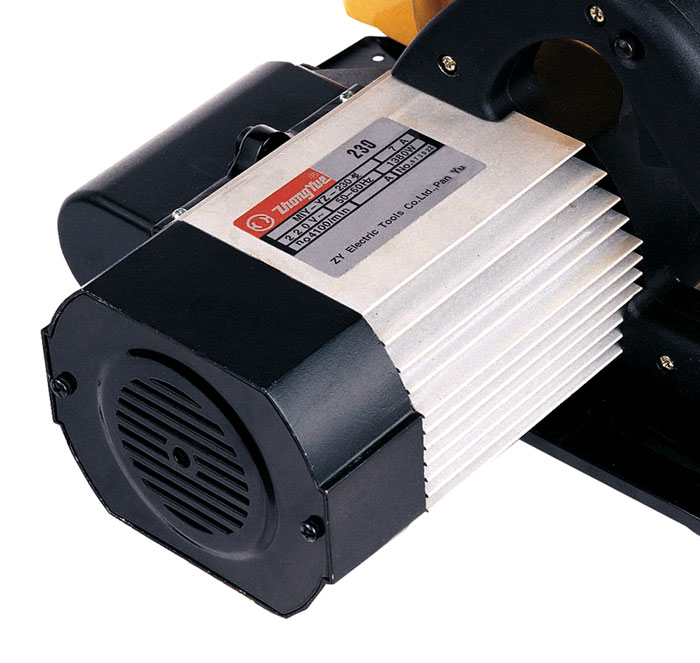

Induction Motor

Features

The AC INDUCTION MOTOR first be used in miter saw with Cinese Patent Design for Mobile table saw
Special AC INDUCTION MOTOR , Work with low noise for environmental protection
No carbon brush and no gear for long life
Can be installed 10 Inch Saw Blade
Powerful 7 AMP AC INDUCTION motor
Weighs only 11 kgs. for easy portability



Standard Equipment (Includes)
Socket wrench
Guide Ruler
Hex Key


Specifications
Volt
220V
AMPS (220V)
7 A
Continuous Rating Input
1600W
No load speed
3000 RPM
Blade Diameter
10 " ( 254mm )
Arbor
1 " ( 25.4mm )
Net Weight
11Kgs
Max. cutting capacities 9" Blade
62 mm
  10" Blade
75 mm
