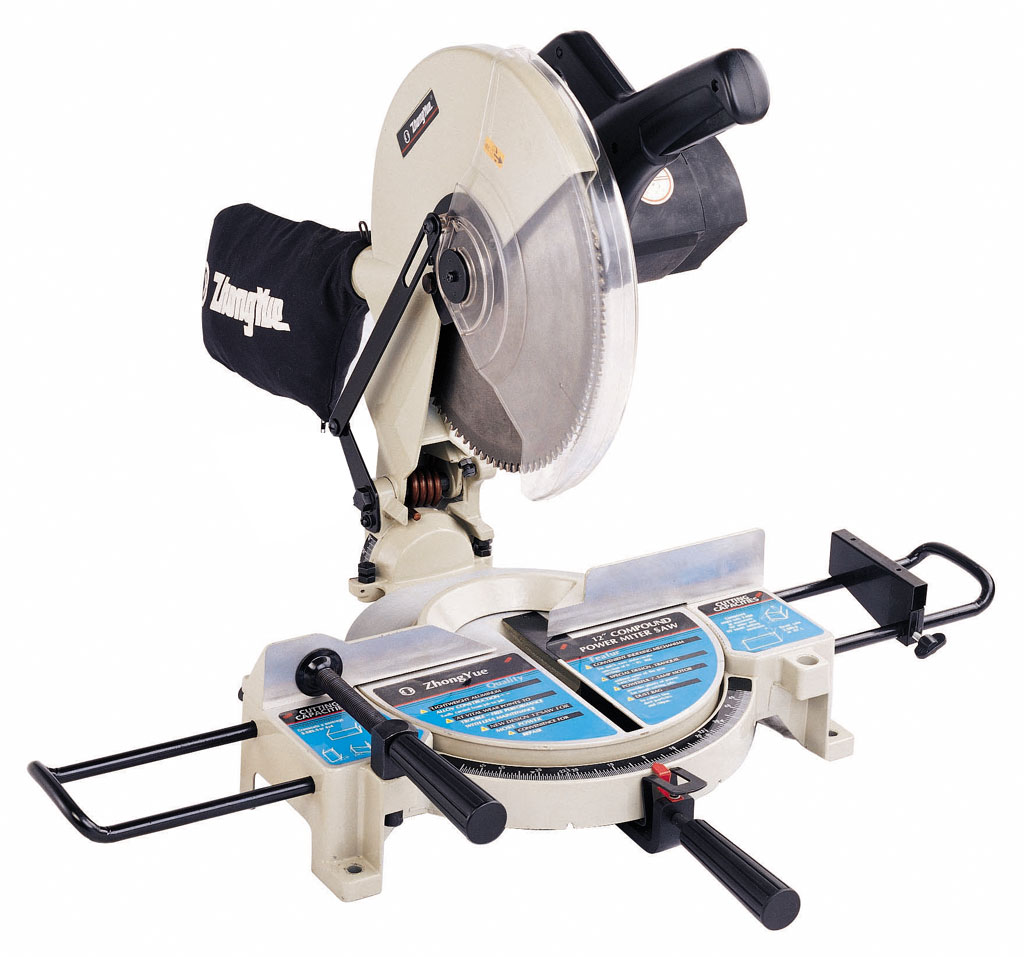

J1X-YZ-305 (1230) --12" Compound miter saw



Larger Picture

Features

 Powerful 5.5 AMP motor
Bevel cuts up to 45¡ã to the left
Miter cuts 0-50¡ãleft and 0-50¡ãright
Weighs only 11.5 kgs. for easy portability
Precision machined aluminum base ensures accurate cuts
Performs compound cutting operations
Positive stops at :22 5¡ã , 45¡ã , right or left and 0¡ã(90¡ãcuts)

Standard Equipment (Includes)
Socket wrench
Work Rest
Ext Brace
Available Virench
Dust bag
Hex Key

Specifications
Volt
220V
AMPS (220V)
5.5 A
Continuous Rating Input
1380W
No load speed
4600 RPM
Blade Diameter
12" ( 305mm )
Arbor
1 " ( 25.4mm )
Net Weight
11.5 Kgs
Bevel Stops
0°,45°
Miter Angle Range
50°Left/ 50°Right
Positive Miter Detent Stops
0°, 22.5°,45°
Max. cutting capacities at 90°
90x145 mm
at 45°
90x105 mm
