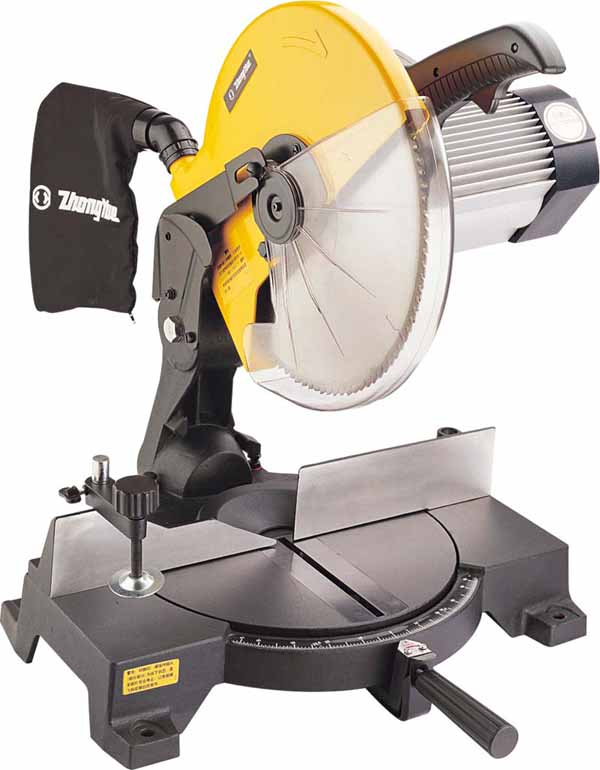

For Aluminum Cutting
Larger
Picture |
|

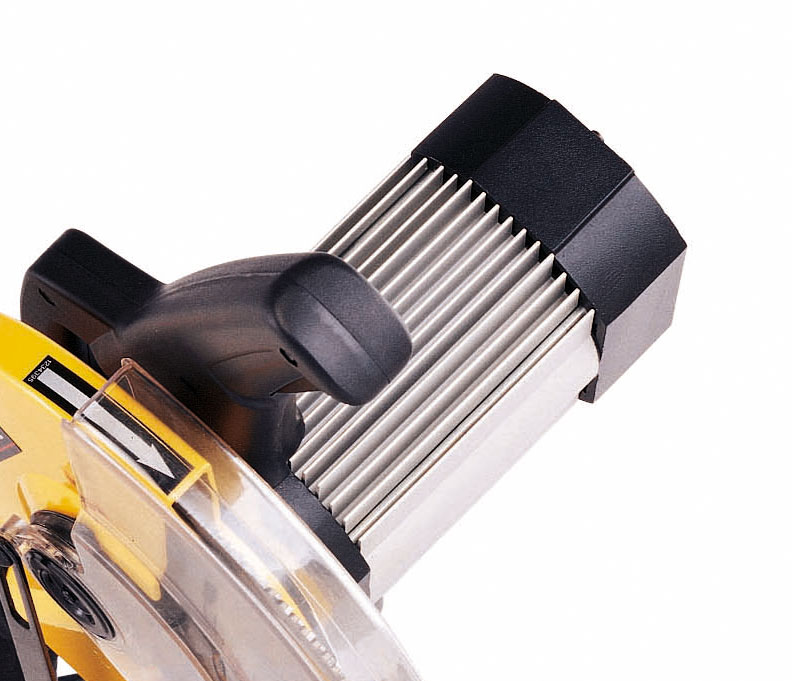

Induction
Motor |
Features
The AC INDUCTION MOTOR first be used
in miter saw with Chinese patent
Powerful
380V AC induction motor with Electrical
Break system
Special AC INDUCTION MOTOR, Work
with low noise for environmental protection
No
carbon brush and no gear for long life
Bevel cuts
up to 45°
to the left
Miter cuts
0-50°
left
and 0-50°
right
Performs
compound cutting operations
Positive
stops at :22 5°
,
45°
, right
or left and 0°(90cuts)
Standard Equipment (Includes)
Socket wrench
Work Rest
Dust bag
Hex Key
| Specifications |
|
|
| Volt |
|
380V
|
| AMPS
(220V) |
|
5
A
|
| Continuous
Rating Input |
|
1600W
|
| No
load speed |
|
3000
RPM
|
| Blade
Diameter |
|
14"
( 355mm )
|
| Arbor
|
|
|
| Net
Weight |
|
40
Kgs
|
| Bevel
Stops |
|
0°
and 45°
|
| Miter
Angle Range |
|
50°Left/
50°Right
|
| Positive
Miter Detent Stops |
|
0°,
22.5°,45°
|
| Max.
cutting capacities |
at 90° |
120x120
mm
|
|
at 45° |
120x85
mm
|
|
|
|
|
|
