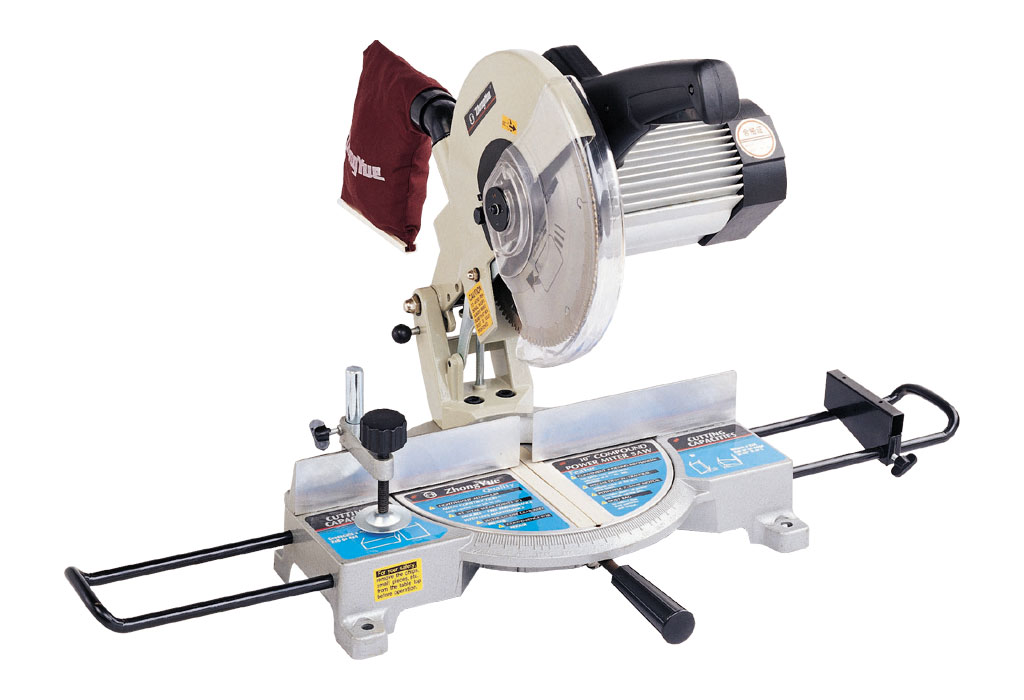

J1X-YZ3-250 (1028) --10" Miter saw



Larger Picture

Features

The AC INDUCTION MOTOR first be used in miter saw with Chinese patent
Powerful 7 AMP AC INDUCTION motor
Special AC INDUCTION MOTOR, Work with low noise for environmental protection
No carbon brush and no gear for long life

Miter cuts 0-50²ãleft and 0-50
²ãright
Weighs only 15.5 kgs. for easy portability
Precision machined aluminum base ensures accurate cuts
Performs compound cutting operations
Positive stops at :
22 5²ã , 45²ã , right or left and 0²ã(90²ãcuts)

Standard Equipment (Includes)
Socket wrench
Work Rest
Ext Brace
Available Virench
Dust bag
Hex Key


Specifications
Volt
220V
AMPS (220V)
7 A
Continuous Rating Input
1600W
No load speed
3000 RPM
Blade Diameter
10 " ( 255mm )
Arbor
1 " ( 25.4mm )
Net Weight
15.5 Kgs
Miter Angle Range
50°Left/ 50°Right
Positive Miter Detent Stops
0°, 22.5°,45°
Max. cutting capacities at 90°
68x126 mm
at 45°
68x89 mm
