J1X-YZ2-250 (1026) --10" Compound miter saw

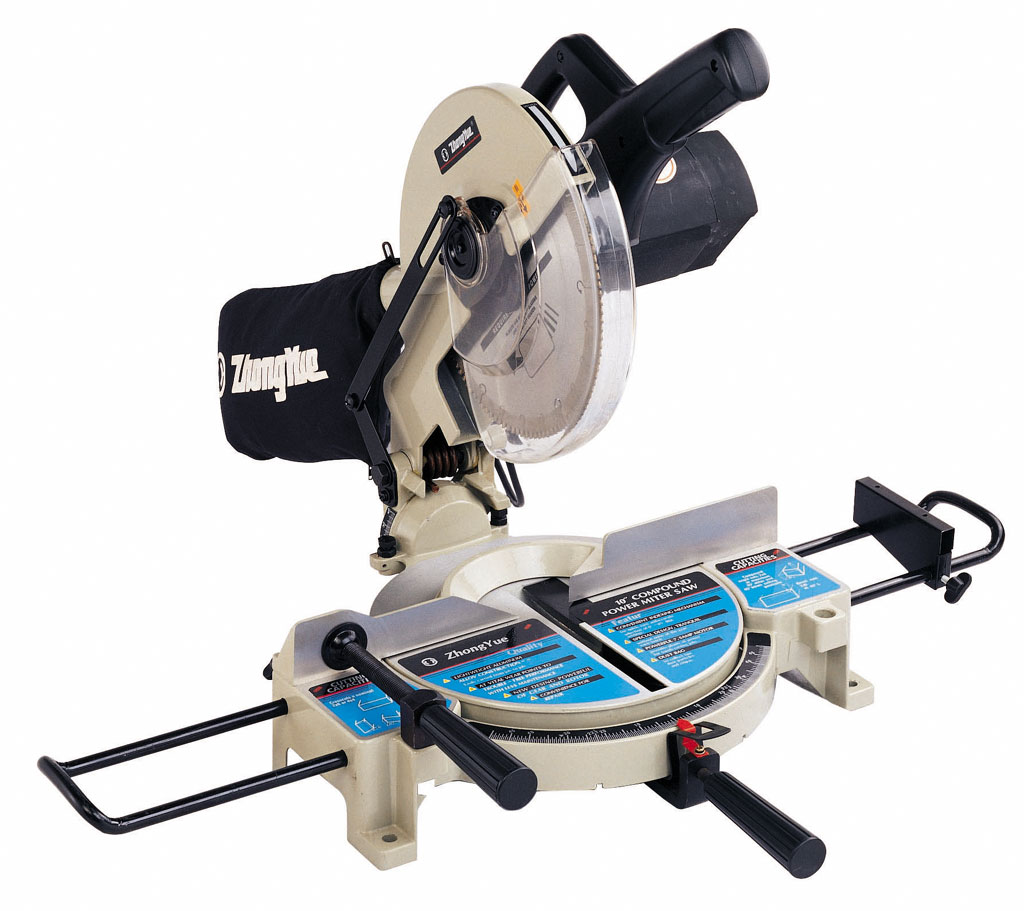

Larger Picture

Features

 Powerful 5.5 AMP motor
Bevel cuts up to 45²ã to the left
Miter cuts 0-50²ãleft and 0-50²ãright
Weighs only 10 kgs. for easy portability
Precision machined aluminum base ensures accurate cuts
Performs compound cutting operations
Positive stops at :22 5²ã , 45²ã , right or left and 0²ã(90²ãcuts)

Standard Equipment (Includes)
Socket wrench
Work Rest
Ext Brace
Available Virench
Dust bag
Hex Key

Specifications
Volt
220V
AMPS (220V)
5.5 A
Continuous Rating Input
1380W
No load speed
4600 RPM
Blade Diameter
10 " ( 255mm )
Arbor
1 " ( 25.4mm )
Net Weight
10 Kgs
Bevel Stops
0°,45°
Miter Angle Range
50°Left/ 50°Right
Positive Miter Detent Stops
0°, 22.5°,45°
Max. cutting capacities at 90°
75x154 mm
at 45°
75x110 mm
