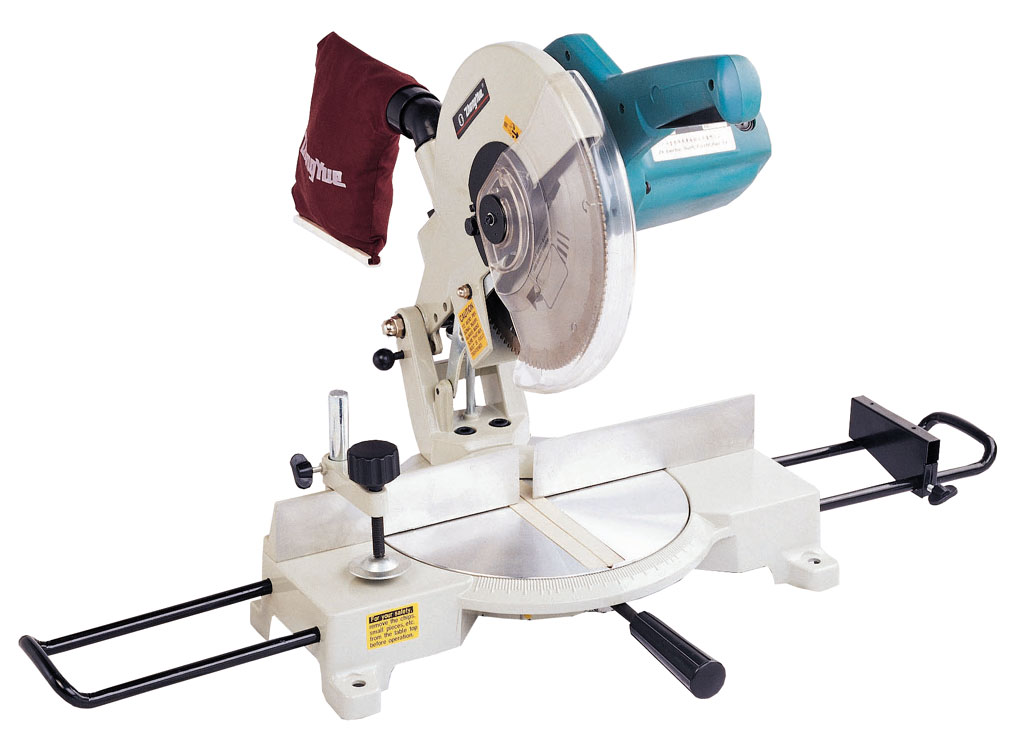

J1X-YZ-250 (1025) --10" Miter saw



Larger Picture

Features


 Powerful 5.5 AMP motor
Miter cuts 0-50 °left and 0-50 ° right
Weighs only 10.5 kgs. for easy portability
Precision machined aluminum base ensures accurate cuts
Performs compound cutting operations
Positive stops at :22 5°, 45° , right or left and 0° (90 ° cuts)

Standard Equipment (Includes)
Socket wrench
Work Rest
Ext Brace
Available Virench
Dust bag


Specifications
Volt
220V
AMPS (220V)
5.5 A
Continuous Rating Input
1300W
No load speed
4600 RPM
Blade Diameter
10 " ( 255mm )
Arbor
1 " ( 25.4mm )
Net Weight
10.5 Kgs
Miter Angle Range
50°Left/ 50°Right
Positive Miter Detent Stops
0°, 22.5°,45°
Max. cutting capacities at 90°
70x126 mm
at 45°
70x89 mm
